Power That Never Stops When Darkness Falls, NovArk Powers Through
Our company was established in 2013 and consists of four branches nationwide. As one of the leading OEM manufacturers of diesel generators in China, we have earned a strong reputation and multiple awards over the years, meeting diverse requests from markets around the world.

NovArk Power Solution for for Dust and Sand Prevention Environment

Full scene adaptation, zero interruption communication, intelligent compliance operation and maintenance
Home / NovArk Powerf Diesel Generator Sets for Dust and Sand Prevention Environment

Overview

Sand and dust are invisible killers, stable operation is the hard truth

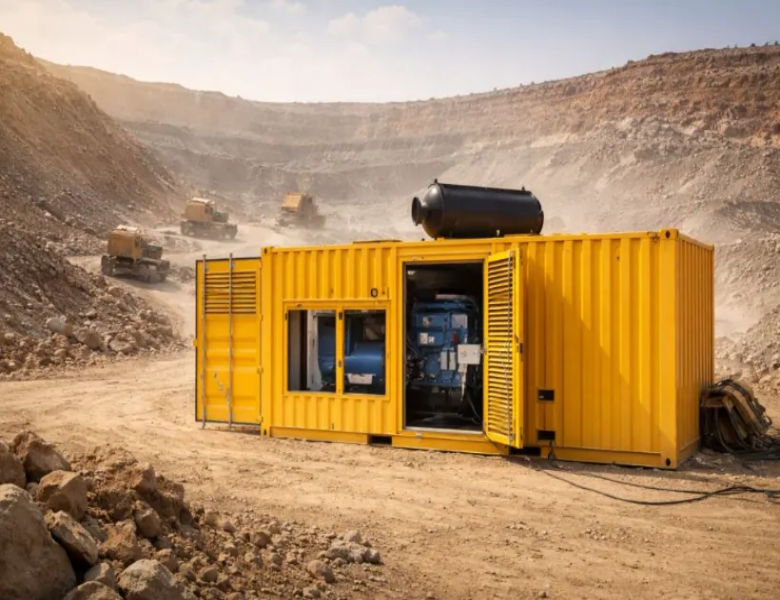

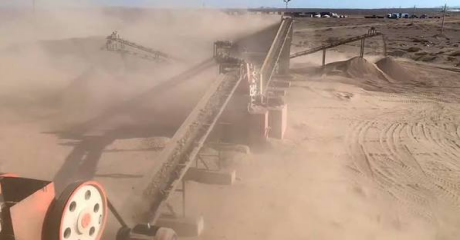

In high sand and dust environments such as desert oil fields, Gobi mines, and construction sites, ordinary generator sets run naked. Fine sand and dust will silently invade every crevice, causing heat dissipation failure, motor wear, control system paralysis, and ultimately leading to shutdown or even equipment scrapping. NovArk Power specializes in extreme environmental power protection and provides a systematic and comprehensive dust and sand prevention solution, ensuring that your equipment remains solid and stable in the face of sandstorms.

Key question

Is your device being affected by these sandstorms?

Customers from different industries face three common core challenges in high dust environments:
1

[Heart damage] Engine and cooling system in emergency

Sand and dust blocking the radiator, causing overheating and shutdown; The high-speed fan blades are worn and the cooling efficiency drops sharply; Ordinary air filters are virtually useless, and fine sand enters the engine interior, causing abnormal wear on key components such as cylinder liners and piston rings.

2

Motor and electrical system paralysis

Sand and dust invading the motor bearings, lubrication failure, causing abnormal noise, vibration, and even burning; Conductive sand and dust cover the circuit board, causing short circuits in the components inside the control cabinet and causing the system to collapse instantly; The sensor is covered by sand and dust, causing data distortion and frequent false alarms.

3

Sealing and Maintenance Costs Soar

Dust accelerates the aging of rubber seals, leading to oil and water leakage; The equipment failure rate is high, and maintenance personnel are exhausted; In remote areas, a shutdown can mean days of waiting and significant economic losses.

Solution

NovArk Power quadruple protection system, creating a sandstorm fortress

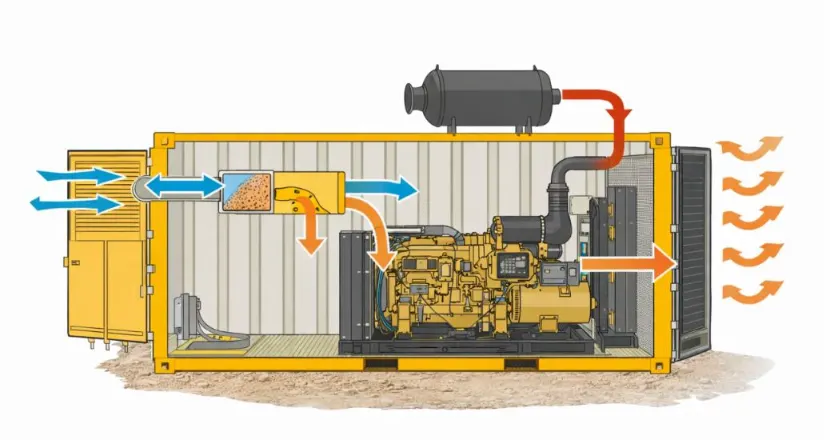

We have constructed a quadruple three-dimensional protection system from the outside to the inside to address the path of sand and dust damage.

Multi stage filtration+positive pressure ventilation：

Cyclone pre filtration: using centrifugal force to separate over 90% of large sand particles first.
Nano precision filtration: PM2.5 grade nanofiber filter paper that intercepts the finest lethal particles.
Positive pressure inside the cabin: Maintain the air pressure inside the engine compartment higher than the outside, forming an "air shield" to prevent sand and dust from infiltrating through gaps.

Self cleaning heat dissipation+wear-resistant fan：

Self cleaning radiator: The corrugated fin design reduces adhesion and is equipped with an automatic blowback device to regularly clean accumulated dust.
Ceramic coated fan: The blade surface is treated with hardening to increase wear resistance several times, ensuring long-term efficient heat dissipation.

Fully enclosed motor+intelligent lubrication

IP65 fully enclosed: The motor reaches the highest dustproof level, and the bearing part adopts a labyrinth double seal.
High viscosity lubricating oil: Combined with oil monitoring, it ensures that bearings always receive optimal protection in dusty environments.

Sealed cabinet+nano coating

Double layer sealed control cabinet: Waterproof and breathable valves are used at the inlet and outlet to balance air pressure and isolate dust.
Nano hydrophobic coating: sprayed onto circuit boards to form a protective film that is dust-proof, corrosion-resistant, and short-circuit resistant.

[Zero Interruption Power Supply]

Stable Parallel Connection · Millisecond Switching

Intelligent Parallel Control:

Equipped with a deep-sea parallel controller, the voltage deviation of multiple parallel machines is ≤± 2%, the load distribution error is ≤± 3%, and N+1 redundancy is supported.

Millisecond-Level Switching:

Switch to unit power supply within ≤ 8ms after mains power interruption, seamlessly connect to core switch UPS.

Wide Voltage Input:

Support 380V ± 15% grid fluctuations and withstand voltage drop at the end of long-distance power supply from overseas nodes.

Intelligent Operation and Maintenance Cost Reduction: Remote Monitoring and Proactive Warning

  • Air intake system clogging:

    Install heavy-duty multi-stage dust-proof air filters + external dust hood;
    Inspect and clean filters daily, replace core elements regularly;
    Seal all pipeline joints to prevent unfiltered dust inhalation.

  • Dust abrasion & contamination of core components:

    Keep unit fully closed with soundproof dust-proof cabinet;
    Seal shaft outlets, wiring holes with rubber dust gaskets;
    Conduct regular oil sampling analysis, shorten engine oil replacement cycle.

  • Radiator & cooling system blockage：

    Equip radiator external dust-proof net, blow dust off with compressed air every day;
    Avoid parking generator downwind of sand flow;
    Timely clean fin gaps and check cooling fan operation status.

[Scenario based installation]

Modular and Split Transportation

Urban Base Station:

Compact soundproof speaker type (occupying ≤ 5 ㎡)+separate transportation (power unit ≤ 300kg manually transported), noise reduction plan for night construction (22:00-6:00).

Field Base Station:

Modular disassembly (power/control/cooling unit), suitable for mountainous/desert scenarios without lifting ports, manual handling and assembly.

Core Equipment Room:

Ultra thin parallel cabinet (depth ≤ 60cm)+customized heat dissipation duct (hot air leads to the outside) to avoid affecting the temperature and humidity of the computer room.

Global Certification and Low Disturbance Operation of Compliance Assurance System

Low Noise and Low Emission:

Modular disassembly (power/control/cooling unit), suitable for mountainous/desert scenarios without lifting ports, manual handling and assembly.

Global Certification:

Certified by CE/UL/SONCAP, providing ITU-T communication industry standard documents and supporting overseas bidding.

Core Technology Characteristics and Communication Load Adaptation

Environmental weather resistance and power supply stability technology

  • Extreme environmental protection:

    Salt spray (316L shell+triple anti paint), high dust (quadruple anti dust), low temperature (-30 ℃ electric heating start) fully compatible.

  • Parallel synchronization technology:

    The digital parallel controller automatically distributes the load, eliminates circulating current, and ensures that the voltage deviation of multiple parallel machines is ≤ ± 2%.

Intelligent operation and scene adaptation technology

  • Intelligent management of mixed oil:

    Automatic proportioning+deterioration warning to avoid equipment damage.

  • Compact deployment:

    The urban base station covers an area of ≤ 5 square meters, and the core computer room has ultra-thin parallel cabinets (depth ≤ 60cm).

Compliance and Low Disturbance Technology

  • Noise control:

    Third party testing report (such as 62dB (A) noise in urban base station cases), in compliance with standard.

  • Emission certification:

    National VI/Euro V/EPA Tier 4 Final, providing carbon footprint report (ESG compliance).

Compliance and Certification System

Product Series and Scenario Selection Guide Product Model Genealogy and Core Parameter Table

Brand(kw)ApplicationCore FeaturesProtection levelNoise(dB)Temperature adaptation range
NovArk-C5050Small base stations inurban areasCompact soundproof speaker, basic vibration isolation, oneclick start stopIP55≤68-10℃~40℃
NovArk-C200200Field base station / data centerQuadruple dust prevention + intelligent parallel connection + remote monitoringIP66s65-30°℃~50℃
NovArk-C500500Core Exchange Center / Overseas NodeN+1 redundancy + DPF + SCR+multi voltage switchingIP66562-30℃~50℃

Suggestions for Scene Selection

Application scenariosCore requirementsNovArk Recommended Configuration
Urban base stationLow noise,compact, and lifting freeModel: NovArk-C50 (Compact Edition) Features: Floor area ≤ 5 ㎡+Split transportation+≤ 65dB (A) Noise service: Nighttime construction plan
Field base station (high mountain/desert)Resistant to low temperature / high dust, easy to transportModel: NovArk-C200 (weather resistant version) Features: quadruple dustproof+electric heating start+modular disassembly Accessories: nano filter cartridge (2000 hours lifespan)）
Core Exchange CenterMulti machine parallel connection, low interferenceModel: NovArk-C500 (parallel version) Features: Deep sea parallel controller+Voltage deviation ≤± 2%+EMC shielding
Overseas communication nodesMultiple certifications and local complianceModel: NovArk-C500 (International Edition) Certification: CE/UL/SONCAP Features: Multi voltage switching+anti salt spray coating

Industry Case Verification

Case 1

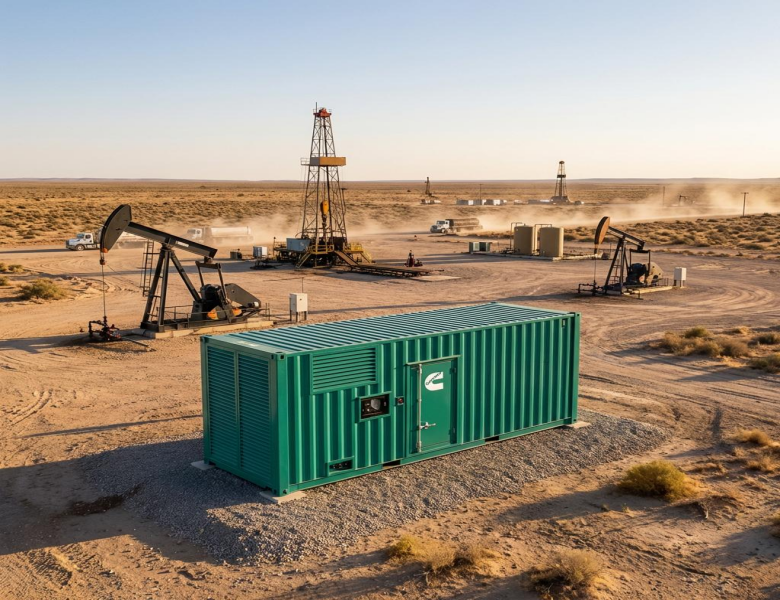

Saudi Arabian Desert Oilfield

Challenge: The average annual sand and dust days exceed 150 days, with wind speeds reaching up to 25m/s. The sand and dust particles are small and abrasive.

Solution:

  • Air intake system: A three-stage filtration system has been deployed - cyclone pre separator (removing over 90% of large particles)+PM2.5 grade nanofiber main filter+optional activated carbon additional filter, ensuring absolute cleanliness of the air entering the engine.

  • Cooling system: Adopting a corrugated fin self-cleaning radiator and integrating an automatic blowback device, it intelligently starts based on the pressure difference sensor signal to remove accumulated dust in real time.
  • Whole machine sealing: The vehicle is designed with reinforced sealing, maintaining positive pressure in the engine compartment and effectively isolating external sand and dust intrusion.

Achievement:

Continuous operation for 8 years, accumulated over 12000 hours, and zero major failures.

Case 2

Xizang plateau communication base station (alpine extreme environment scenario)

Challenge: At an altitude of 4500 meters (low temperature -25 ℃) and high dust (PM10=500 μ g/m ³), the original unit failed to start and experienced frequent malfunctions, resulting in interm interidity interidity interidity, interx.com 800000 yuan.

Solution:

  • Unit configuration: Deploy 50 NovArk-C200 (weather resistant version).
  • Startup and dust prevention: Electric heating start (-30 ℃ 10 seconds start)+quadruple dustproof.
  • Installation method: .Monitoring guarantee: Integrated cloud monitoring platform

Achievement:

Two consecutive years, there have been no startup failures, and the number of communication interruptions has been reduced to zero. The company has been fined 800000 yuan annually and has btlen awarded the title 800000 yuan annually and has been awarded the title.

Operations and Emergency Support

Remote Operation and Maintenance:

24/7 cloud platform monitoring, automatic fault push (including graphic and text processing guide), AI prediction of mixed oil deterioration and filter blockage.

Quick Response:

Arrive within 48 hours domestically (24 hours in first tier cities), arrive within 72 hours overseas; Exclusive maintenance window for urban base stations (2-5 am).

Spare Parts Guarantee:

6 major spare parts warehouses nationwide (Beijing, Shanghai, Guangzhou, Shenzhen, Chengdu, Wuhan)+overseas warehouses (Singapore/Frankfurt), with core components (controllers/filters) arriving within 72 hours.

Training Support:

Provide multilingual (Chinese/English/French) operation videos, graphic manuals, and on-site training (for operation and maintenance personnel) covering installation and parallel debugging.

FAQ

Your Most Concerned Question Is as Follows

  • Can you provide packing list, bill of lading and commercial invoice?
    We supply complete and compliant export documentation, including commercial invoices, packing lists, transport documents and certificates required for international customs clearance.
  • What international certifications do you have? Is customs clearance available?
    Our products are certified with CE, ISO, GCC and CCC standards, providing compliance for major international markets and supporting smooth customs clearance and project approval processes.
  • Is the quotation based on FOB, CIF or EXW terms?
    We provide flexible quotations under EXW, FOB and CIF terms, with transparent cost breakdowns and customized logistics solutions to meet different international trade requirements.
